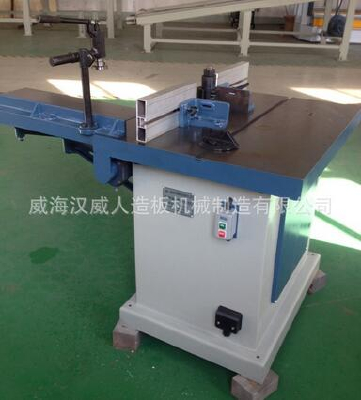

Spindle shaper

Spindle shaper

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: china ports
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2007-08-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  china
  • Brand Name:  hanvy
  • Model Number:  MX5513B
  • Product Description

  • Woodworking milling machine is to use high speed rotating cutter (see woodworking tool) for timber slotting, tenoning and processing the forming surface of woodworking machine.

    Spindle shaper is a stationary woodworking machine in which a vertically orientated spindle protrudes from the machine table and can be spun at speeds typically between 3000 and 10,000 rpm. Cutter heads may be mounted on the spindle. As the workpiece is fed into the machine, the cutters mould a profile into it. On some shapers, router bits can also be used using a special mounting adapter.

     The machine normally features a vertical fence, against which the workpiece is guided to control the horizontal depth of cut

  • Place of Origin:  china
  • Brand Name:  hanvy
  • Model Number:  MX5513B
ModelMX5513B
Max. milling height (mm)130
Cutting diameter (mm)90
Fixed table size (mm)1000 x 460
Travelling table stroke (mm)680
Spindle lifting height (mm)100
Spindle diameter (mm)40
Spindel speed (rpm)10000/8000/6000
Motor power (kw)3
Overall dimensions (mm)1020 x 710 x 1131
Weight (kg)410
