Product Details
- Place of Origin: china
- Brand Name: hanvy
- Model Number: MJ162A,MJ163A
Product Description:

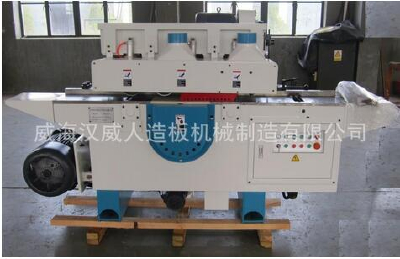

A multi-blade rip saw is a saw that is specially designed for making rip cuts. The cutting edge of each tooth has a flat front edge and it is not angled forward or backward. This design allows each tooth to act like a chisel (as opposed to a knife as with the crosscut saw), which prevents the saw from following grain lines. By acting like a chisel, the saw can more easily cut across grain lines, which is necessary if a straight cut is to be achieved.
For these models, the feeding device is special track. The min. blade capacity is 4pcs, the max. blade capacity is 10pcs.
- Place of Origin: china
- Brand Name: hanvy
- Model Number: MJ162A,MJ163A
| Model | MJ162A | MJ163A |
| Max. sawing thickness (mm) | 75 | 100 |
| Max. sawing width(mm) | 200 | 320 |
| Min. sawing length (mm) | 230 | 400 |
| Feed speed (m/min) | 6-24 | 6-24 |
| Diameter of saw blade （mm) | Φ255-305 | Φ400 |
| Total motor power (kw) | 22 | 37 |
| Overall dimensions (mm) | 2140*1010*1660 | 2870*1180*1524 |
| Weight | 1800KG | 2000KG |
