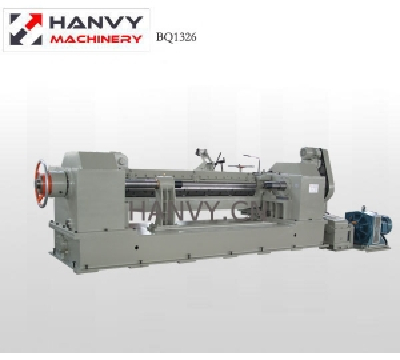

Mechanical spindle veneer lathe

Mechanical spindle veneer lathe

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: china ports
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2007-08-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  china
  • Brand Name:  hanvy
  • Model Number:  BQ1326
  • Product Description

  • This veneer peeling lathe can be used to peel core veneer. It also the ecnomical choice for plywood industry. The control system is PLC. It uses twist grip to control the working length, and uses chain transimission to control the spindle speed. The knife assembling system also uses manual method.

    For the 8ft model, we have do some special design to provide log bending: we set up one center carriage to hold the long chuck( the length can be adjusted).

  • Place of Origin:  china
  • Brand Name:  hanvy
  • Model Number:  BQ1326

The main specification:

Model

BQ1326/5

BQ1320/5

BQ1315/5A

Max.log diameter

¢125-500mm

¢125-500mm

¢120-500mm

Max.log length

2100-2700mm

1500-2100mm

1450mm

Veneer thickness

0.3-3.25mm

0.3-3.25mm

0.8-3.0mm

Chuck diameter

¢100mm

¢100mm

¢100mm

Chuck rotation speed

43-131rpm

53-160rpm

13-130rpm

Speed of quick forward and backforward of carriage

1.37m/min

1.37m/min

1.5m/min

Main motor power

55kw

55kw

22kw

Feeding motor power

3kw

3kw

1.1kw

Clamping motor power

3kw

3kw

3kw

Grinding angle of appropriate tool carriage

18°-- 20°

18°-- 20°

18°-- 20°

Overall size

6990x2120x1325mm

6990x2120x1333mm

4760x2099x1251mm

Net weight

14000kg

12000kg

4500kg
