- Place of Origin: china
- Brand Name: hanvy
- Model Number: YM3000B

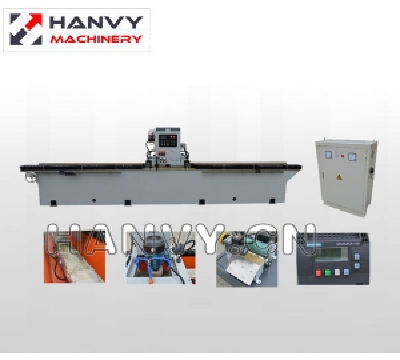

Knife grinder is aimed at turning tool, bit, cutter, carving knife, computer engraving machine, engraving machine, machining center, CNC, carving machine, dividing machine, marking machine and other metal grinding equipments.
The machine is widely used in plywood and veneer production industry, used to sharpening the knife on Veneer Peeling Machine and Veneer Clipper, Veneer slicer, to guarantee the machine in good and continuous working condition.
For the knife grinder, there are more selections for user to choose, like the common model with electromagnetic chuck, precision model with linear guide and inventer and all screw.
- Place of Origin: china
- Brand Name: hanvy
- Model Number: YM3000B
MD-1500C | MD-2000C | MD-2500C | MD-3000C | |
Grinding length | 1500mm | 2000mm | 2500mm | 3000mm |
Grinding head rotation speed | 1400r/min | 1400r/min | 1400r/min | 1400r/min |
Worktable size | 180x1500mm | 180x2000mm | 180x2500mm | 180x3000mm |
Grinding head motor power | 4/5.5/7.5/11kw | 4/5.5/7.5/11kw | 4/5.5/7.5/11kw | 4/5.5/7.5/11kw |
Grinding head travel speed | 0-16m/min | 0-16m/min | 0-16m/min | 0-16m/min |
Travel motor power | 1.1kw | 1.1kw | 1.1kw | 1.1kw |
Grinding wheel dimension | Φ200x110x32mm | Φ200x110x32mm | Φ200x110x32mm | Φ200x110x32mm |
Overall dimension | 3500x1100x1300mm | 4000x1100x1300mm | 4500x1100x1300mm | 5000x1100x1300mm |
weight | 2100kg | 2400kg | 2700kg | 3000kg |
Worktable angle adjustment | ±45° | ±45° | ±45° | ±45° |
