Cold Press(Pre-press Machine)

Cold Press(Pre-press Machine)

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: china ports
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2007-08-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  china
  • Brand Name:  hanvy
  • Model Number:  BY814x8/4

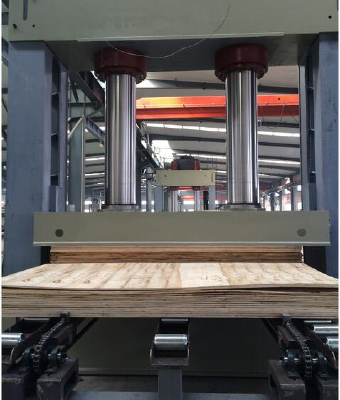

Pre-pressing machine is also called cold press, which has a large daylight. A pack of spread veneers,It is suitable for the forming and molding of veneer, rubber, PVC and resin objectsCapacity of pressure is optional by our customers.

Packing Details:High quality plastic sheeting with wireropr fixed, to ensure the transfering safe.

  • Place of Origin:  china
  • Brand Name:  hanvy
  • Model Number:  BY814x8/4

Model

BY814X8/5B

BY814X8/4C

Nominal pressure

5000kn

4000kn

Surface pressure

1.3MPa

1.3MPa

Platen size

2700x1370mm

2700x1370mm

Max. working stroke

1000mm

1000mm

Net opening

300-1300mm

300-1300mm

Press cylinder diameter and no.

360mmx2

360mmx2

Lift cylinder diameter and no.

80mmx2

80mmx2

Feeding conveyor speed

6.78m/min

6.78m/min

Total motor power

16.1kw

16.1kw

Overall dimension

3500x2400x4765mm

3500x2400x4650mm

Weight

18000kg

17000kg
