Product Details
- Place of Origin: china
- Brand Name: hanvy
- Model Number: HDD1126/4-1, HDD113/4-1

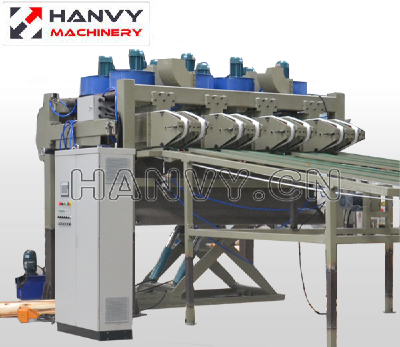

The Automatic veneer stacker is controlled by mechanical, hydraulic, pneumatic and electrical procedure. It can realize veneer auto stacking, improve production efficiency, and save production cost.
- Place of Origin: china
- Brand Name: hanvy
- Model Number: HDD1126/4-1, HDD113/4-1
Technical data:
| Model | HDD1126/4-1 | HDD1113/8-1 |
| Stacking size (feet) | 8*4 | 4*8 |
| Max. working width (mm) | 2600 | 1350 |
| Min. working width (mm) | 2200 | 800 |
| Veneer thickness (mm) | 1.0-2.2 | 1.0-2.2 |
| Max. speed (m/min) | 100 | 100 |
| Max. stack height (mm) | 1000 | 1000 |
| Motor power (kw) | 24 | 20.95 |
| Overall dimension (mm) | 9000*3100*3510 | 9800*2400*3080 |
| Weight (kg) | 4700 | 4800 |
